K-TEK-M129-58-OMS-DT-DWP

Category：	Waterproof mouse
Key Number：	4 keys
Interface：	USB
Key Switch：	Micro switch technology
Protection Level：	IP68
Mounting Solution：	Desktop version
Operating Temperature：	-40ºC to +55ºC
Application：	Industrial, Vehicle, aerospace, naval, maritime, Radar, display console, portable rugged laptop, UAV ground station, GCS etc.

Prev： K-TEK-M129-58-OMS-NV-151B-DT-DWP

Next： K-TEK-M305-FN-DWP

Description

Download

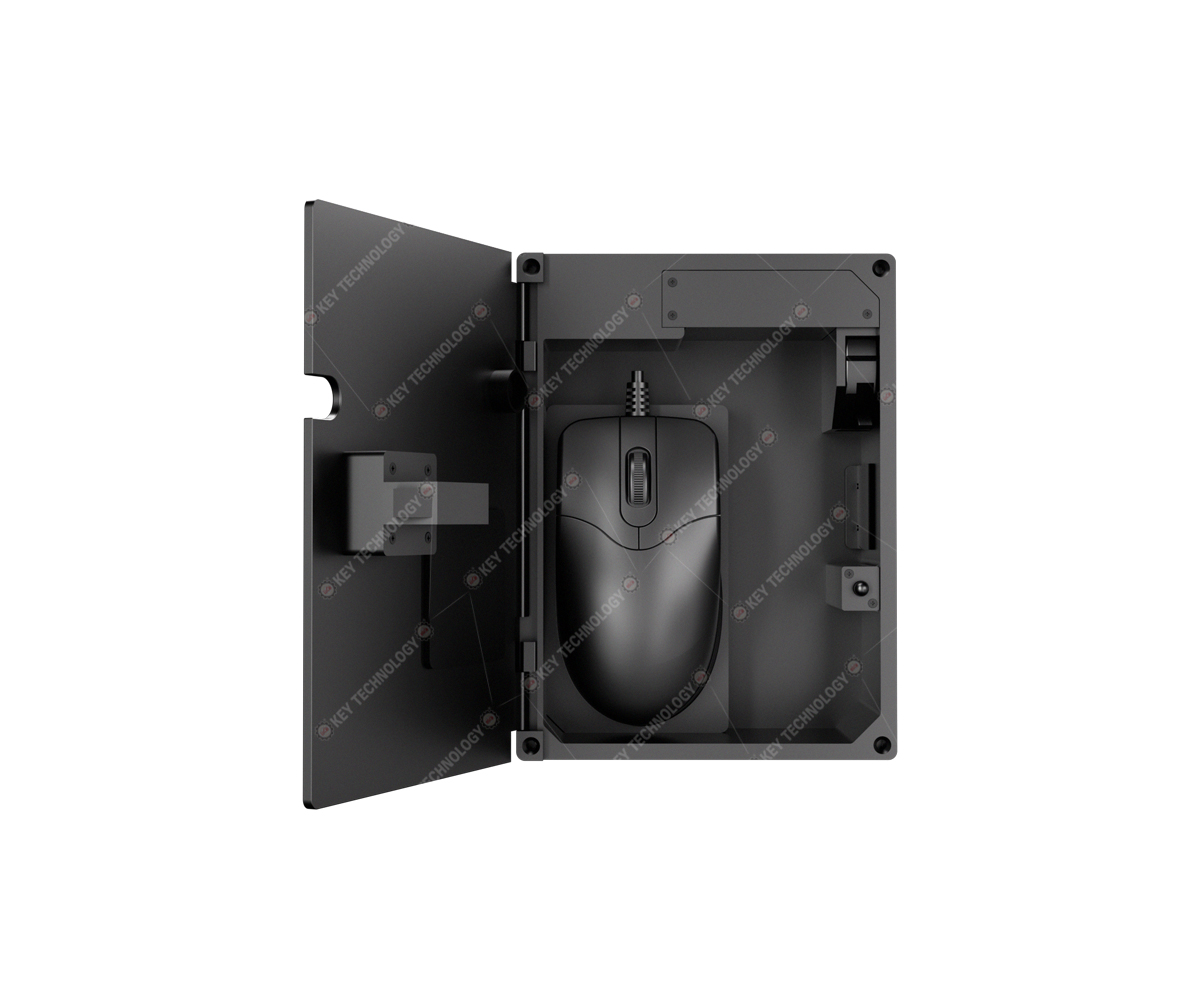

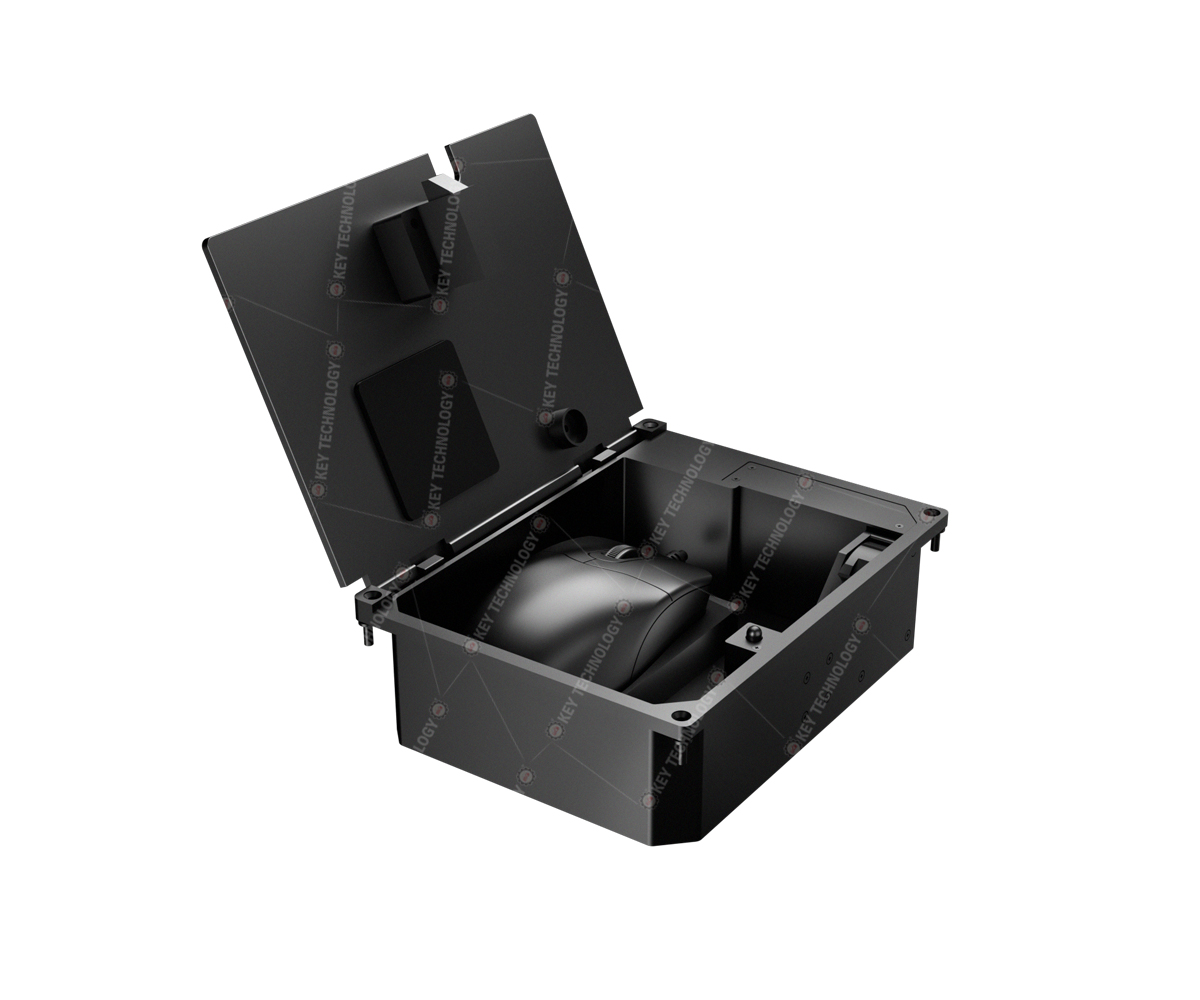

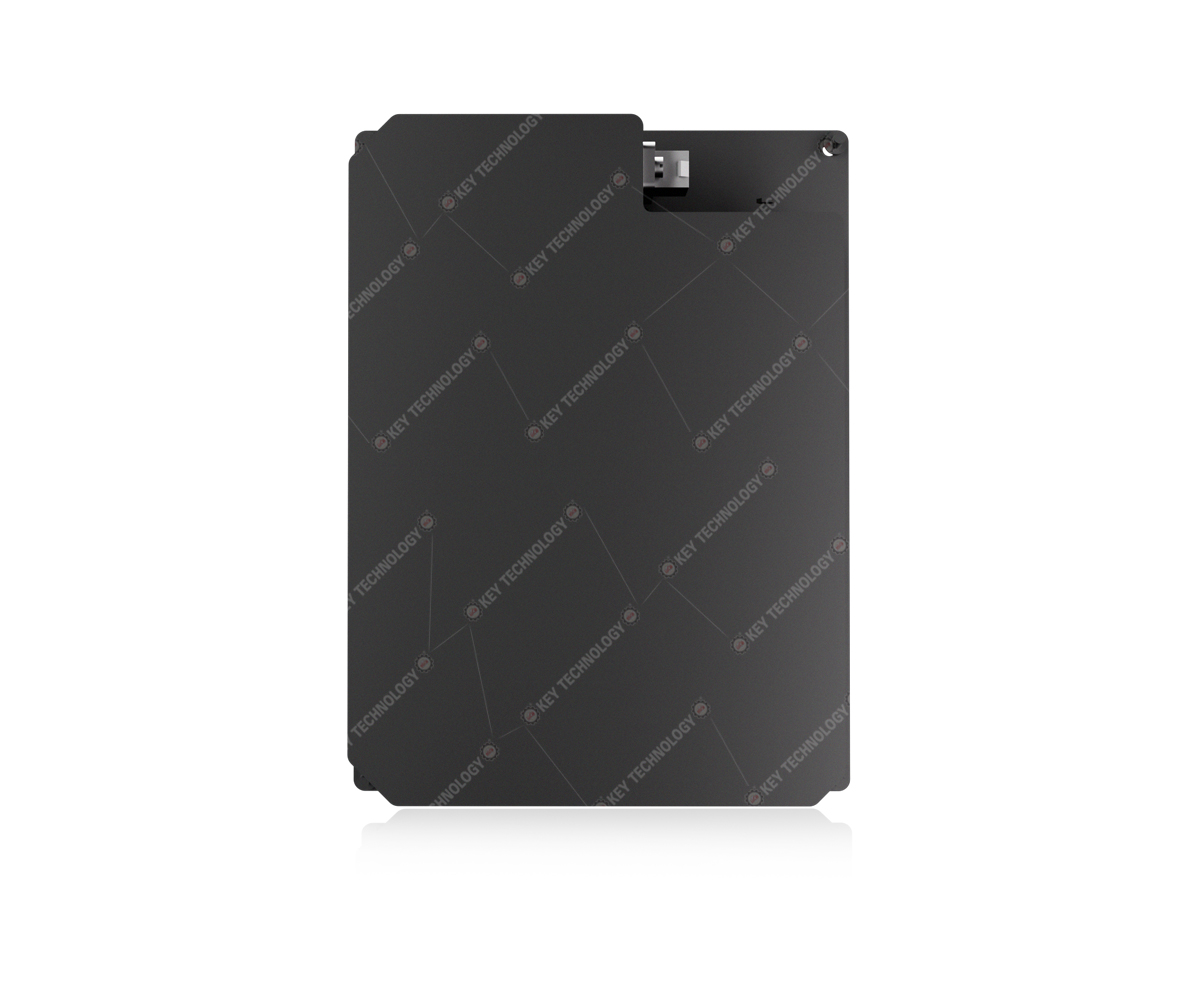

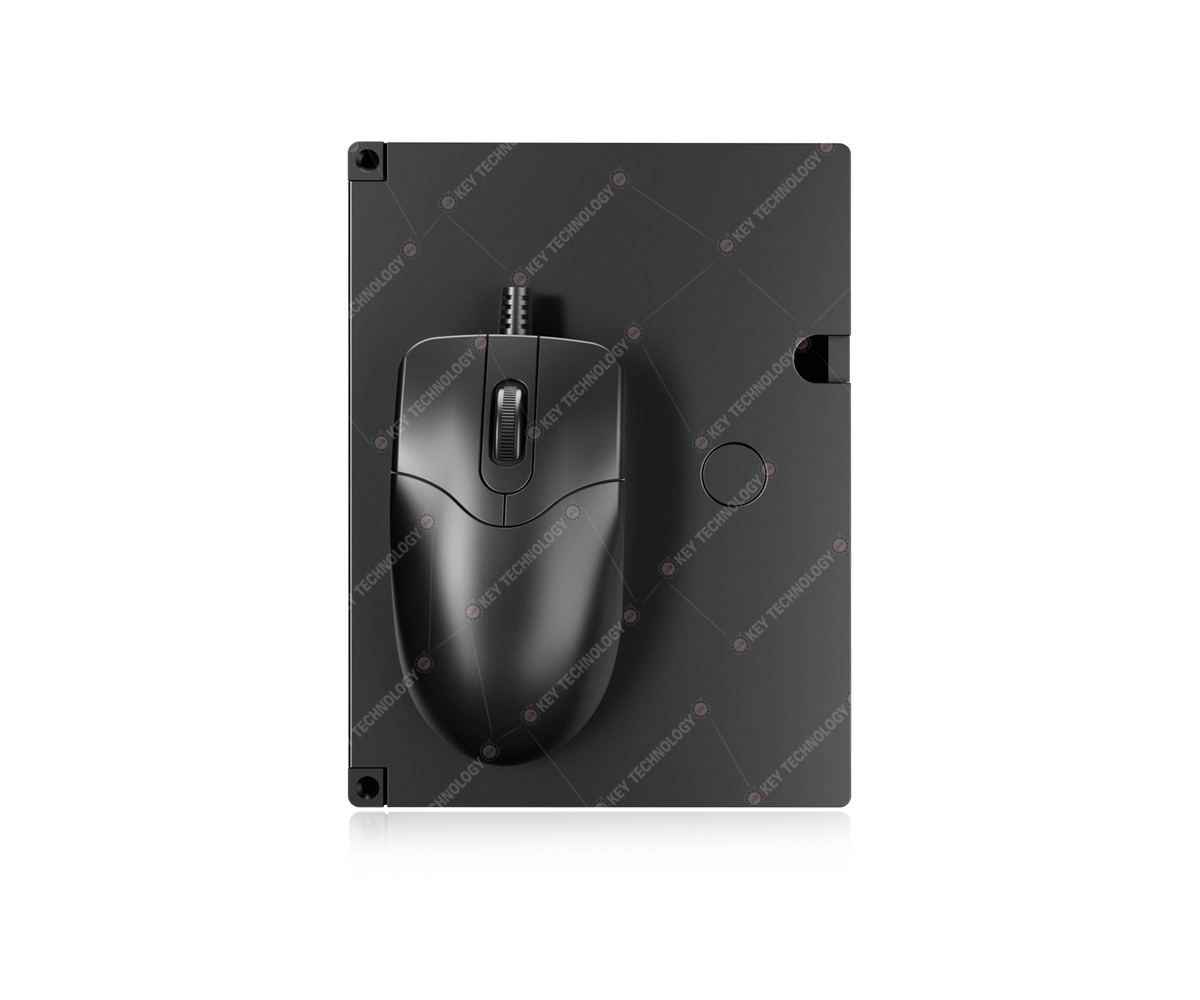

DESCRIPTION: IP68 dynamic rated sealed and rugged waterproof professional optical mouse, DPI can be adjusted and switched by mouse button, with extremely good tactile feeling for left and right clicking, durable coating & antimicrobial surface to withstand most chemicals and liquids under harsh environments, USB interface with a retractable cable for adjustable length, plug and play, as well as CNC storage case with versatile cable routing for easy organization. Designed to meet MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, rain, dust, fungus, solar radiation etc.), as well as military standards: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity; MIL-STD-461G-EMC-EMI-EMS-ESD optional. Patented No. 202422493192.6

DIMENSIONS: 129.0mm x 172.0mm x 53.0mm (L x W x H)

MECHANICAL DATA
Actuator/keys	4 keys (Left+right mouse key+Scrolling key+DPI adjustable key)
Key Switch Technology	Micro switch + plastic mouse buttons
Actuation Force	0.55±0.15N
Key Gram Force	50±10gf
Resolution	400-800-1200-1600DPI
Actuation Pressure	1.0N-2.0N
Rotary Encoder Lifespan	≥0.8 millions rotations (one clockwise/counterclockwise cycle counts as one rotation)
G.W.	1.0KGs
ELECTRICAL DATA
Supply Voltage	DC +5V±5%
Current Rating	≈80mA
EMC standard	EN 55032:2015 EN 55035:2017
Lifespan	> 5 years
Interface	USB
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature	-40℃ to +55℃
Storage temperature	-45℃ to +60℃
Operating RH	3%~95%
Atmospheric pressure	60-106Kpa
Saline mist	96 hours, IEC 60512-6
Damp heat test at +40℃	21 days, IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
RELIABILITY
RoHS Compliant, CE and FCC
MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, rain, fungus etc.)
Protection Level	IP68
MTBF	>20000H
MTTR	<30min
APPLICATION	Industrial, Vehicle, aerospace, naval, maritime, Radar, display console, portable rugged laptop, UAV ground station, GCS etc.

K-TEK-M129-58-OMS-DT-DWP mechanical drawing
