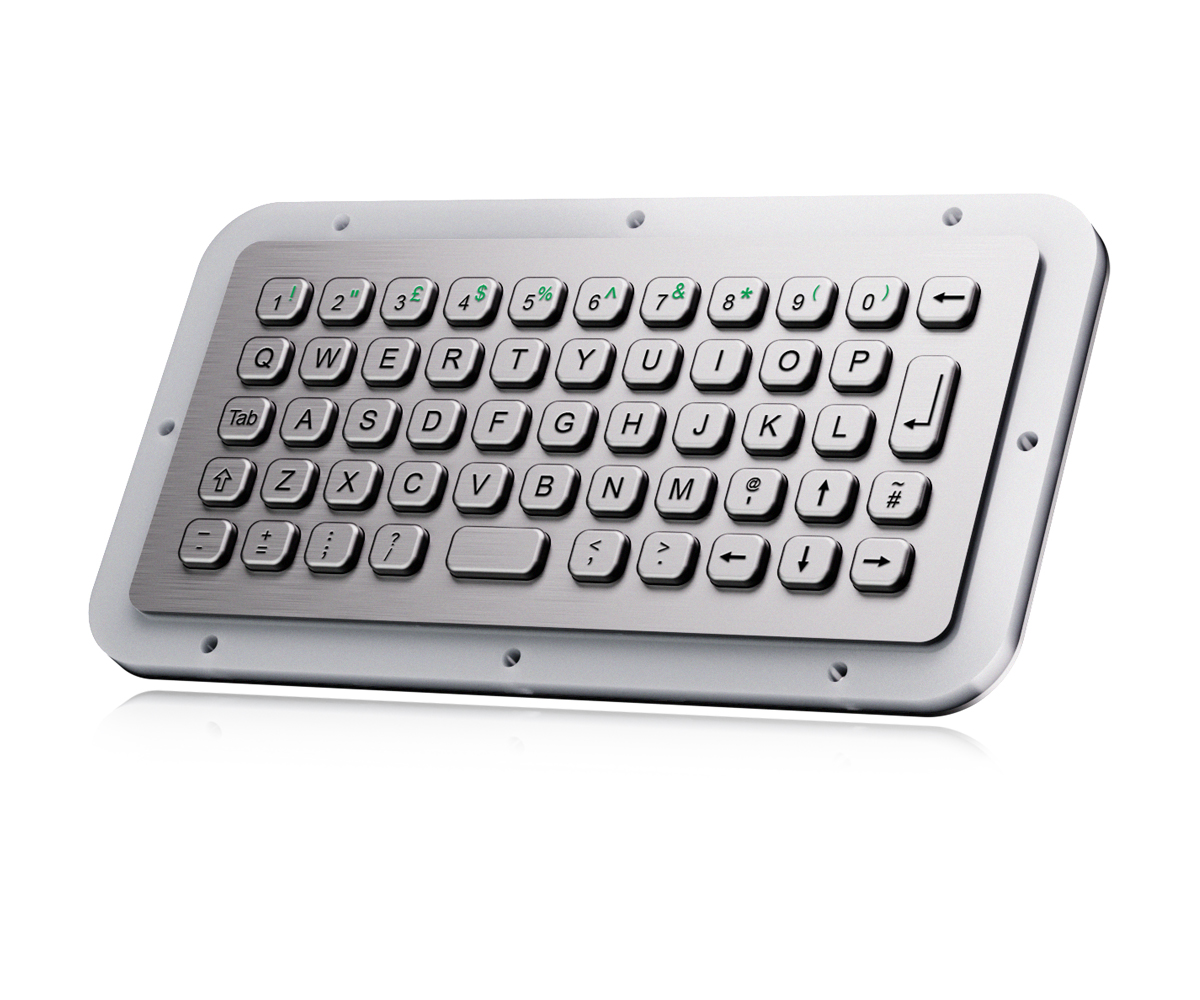

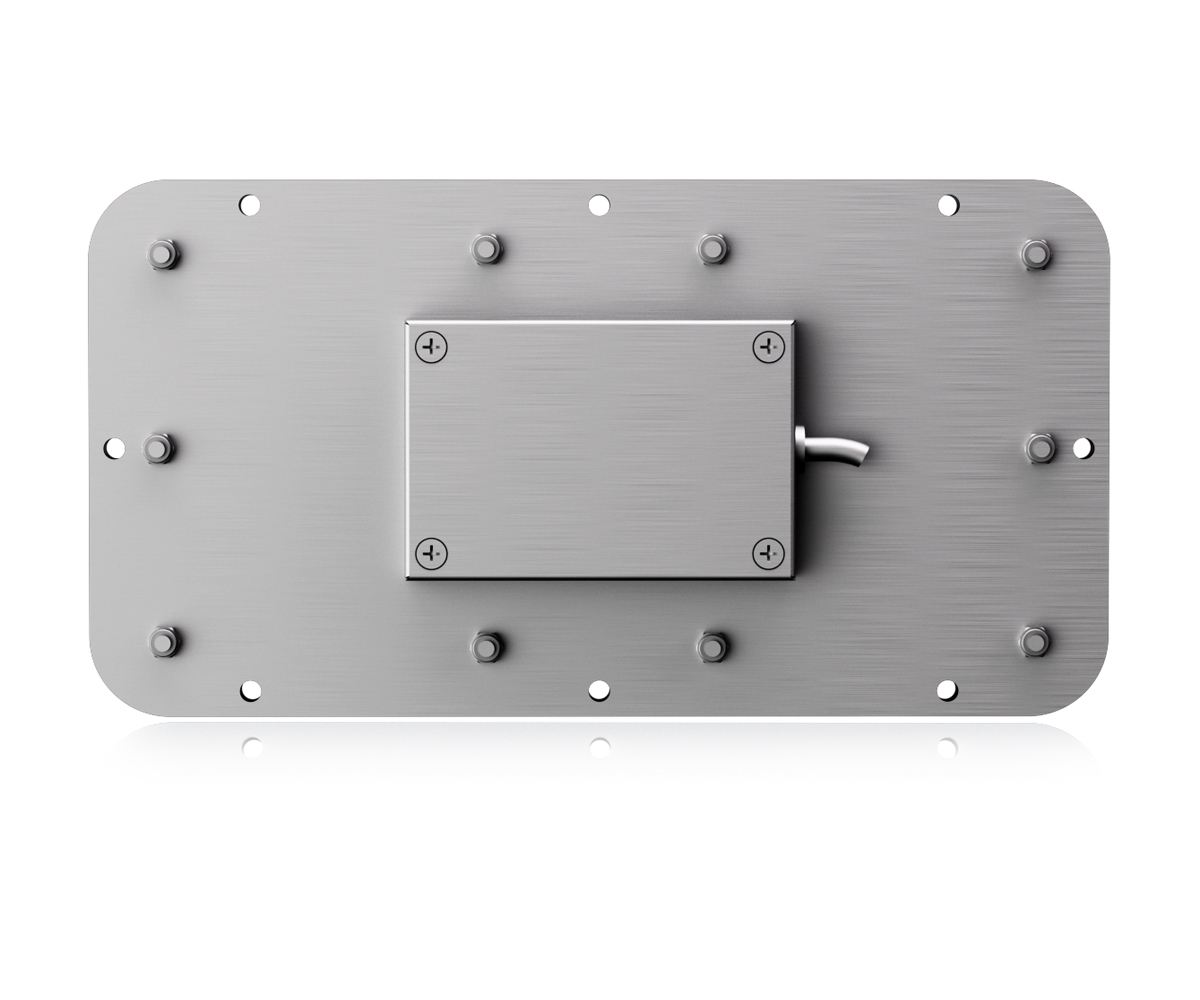

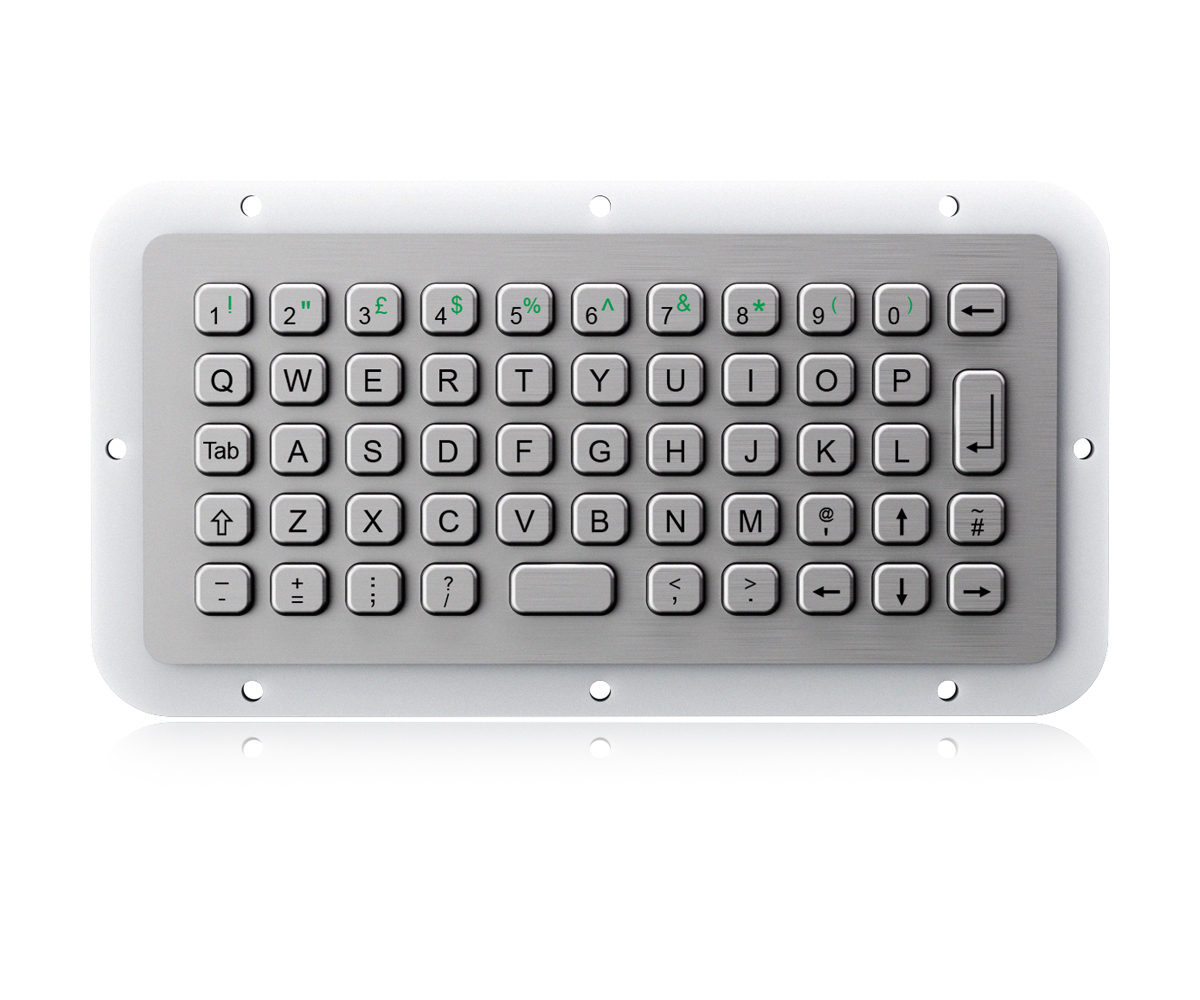

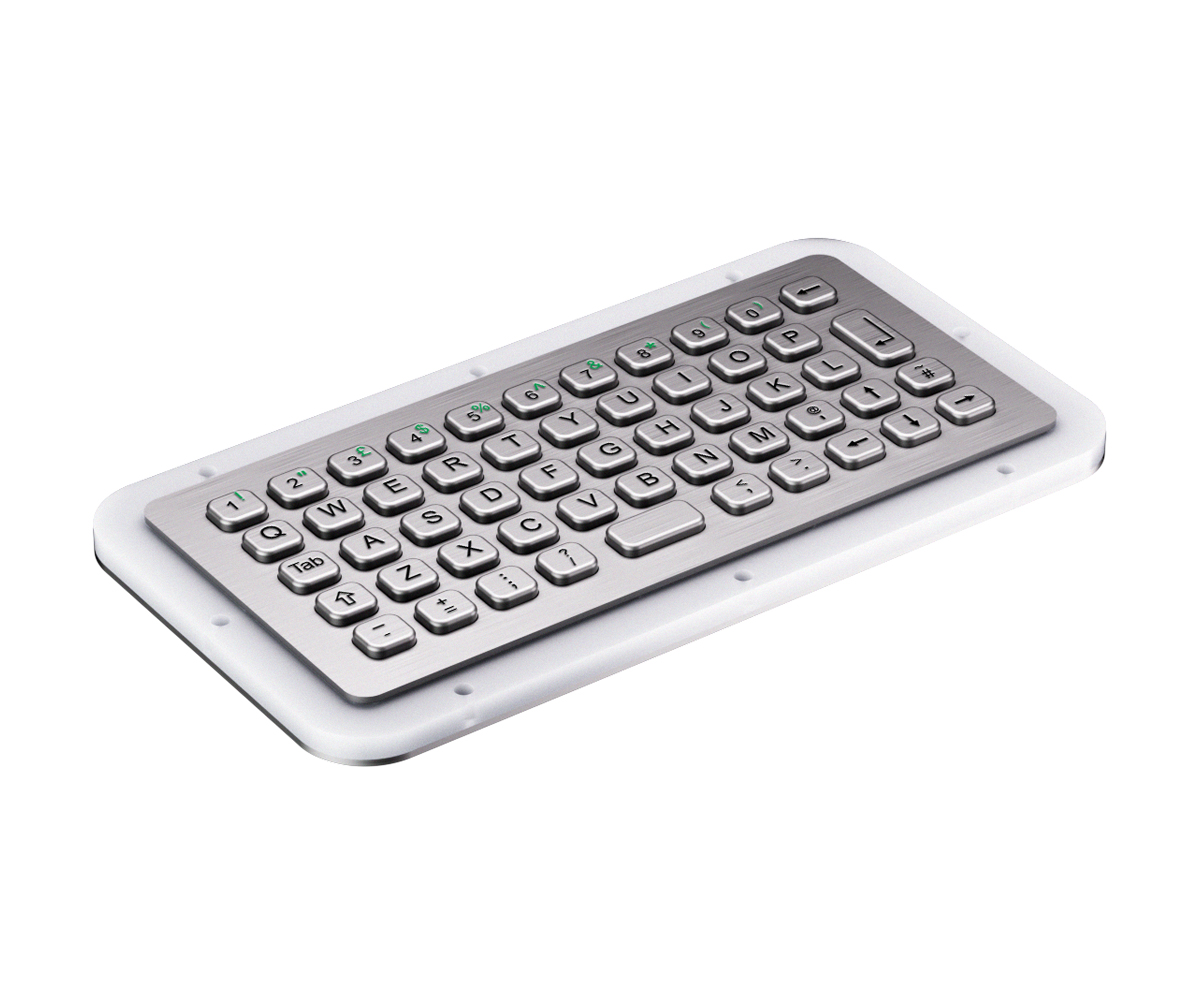

DESCRIPTION: 53 keys compact format IP65 dynamic washable vandal proof stainless steel industrial keyboard, industrial PCB with carbon-on-gold key switch technology with long stroke (1.50±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, rear stainless steel plate with mounting holes and water-tight gasket for easy sealing and tightening with cabinet or panel, rear panel mounting solution. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc. no rust risk and anti-salt spray corrosion.
DIMENSIONS: 170.0mm x 80.0mm (front panel)
MECHANICAL DATA |
Actuator/keys | 53 keys |
Key top style | Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available |
Key Size | 10.0mm x 11.0mm for normal keys |
Key travel | 1.50±0.10mm |
Actuation Force | 1.5N±0.2N for key 14.0mm x 14.0mm (pressure point ), 2.5N±0.2N for key 14.0mm x 28.0mm (pressure point) |
G.W. | 1.00KGs |
ELECTRICAL DATA |
Supply Voltage | DC +5V±5% |
Current Rating | 30mA |
EMC Standard | EN 55032:2015 EN 55035:2017 |
Lifespan | > 5 years |
Switch Contact Material | Carbon-on-Gold key switch technology PCB |
Interface | PS2, USB available |
OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
ENVIRONMENTAL ADAPTABILITY |
Operating temperature | -20℃ to +65℃ |
Storage temperature | -30℃ to +75℃ |
Operating RH | 100% |
Atmospheric pressure | 60-106Kpa |
Saline mist | 96 hours, IEC 60512-6 |
Damp heat test at +40℃ | 21 days, IEC 60512-6 |
Dry heat test at +85℃ | 10 days, IEC 60512-6 |
RELIABILITY |
RoHS Compliant, CE and FCC, ESD |
Protection Level | IP65 dynamic (front panel) |
Vandal resistant | IK08 |
Key Lifespan | >5 million actuations |
MTBF | >20000H |
MTTR | <30min |
APPLICATION | Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc. |
