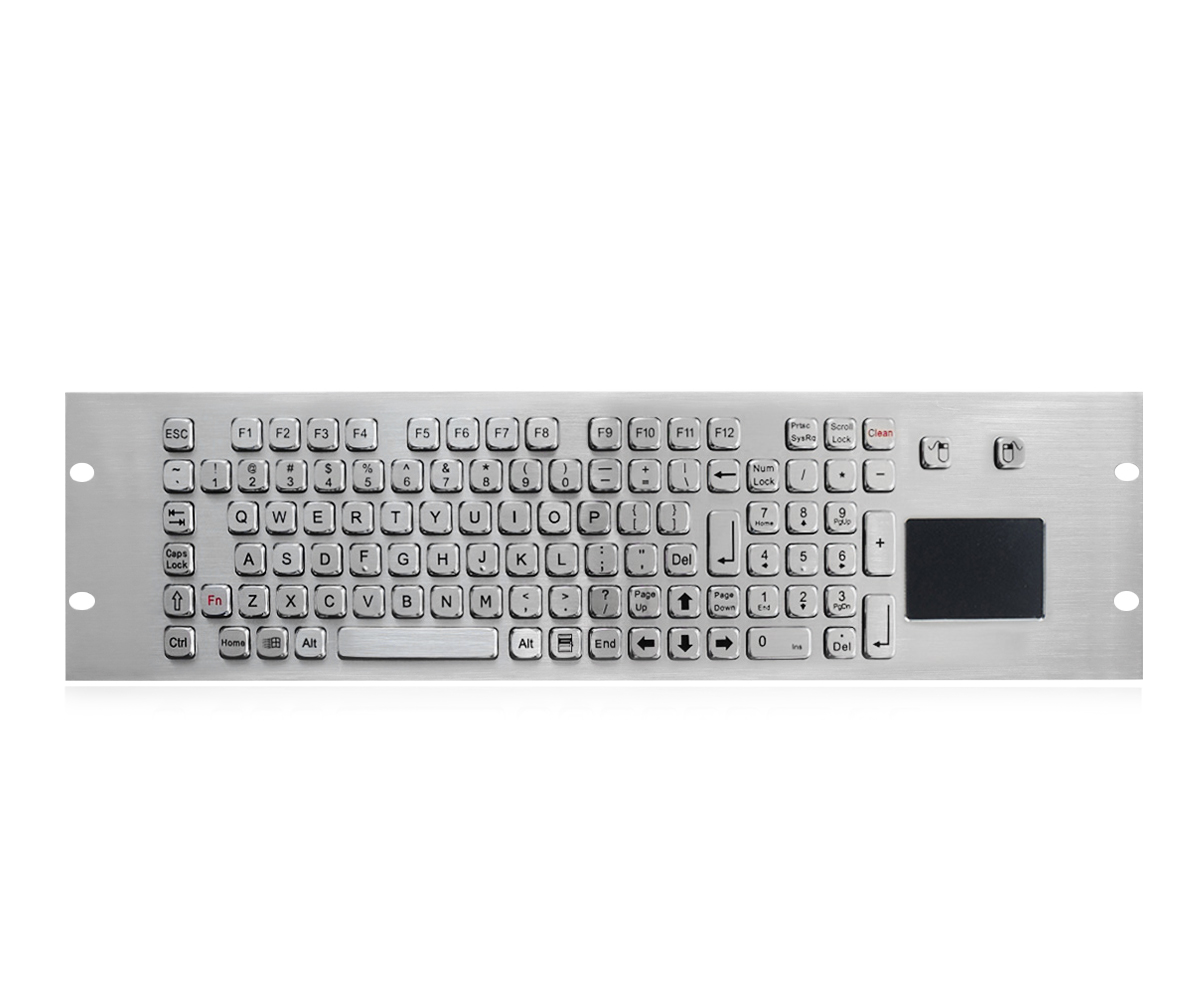

DESCRIPTION: 103 keys (including 2 mouse buttons) IP65 vandal proof stainless steel industrial keyboard with full keyboard functionalities, with IP65
dynamic sealed & ruggedized tough touchpad with 400DPI resolution for fast and accurate cursor position, integrated with numeric keypad, and function
keys F1, F2..F10, F11, F12 on the top line for easy operation, industrial PCB with carbon-on-gold key switch technology with long stroke (1.50±0.10mm)
with extremely good tactile feeling for fast and accurate data input without any noise, top panel mounting solution with mounting holes, FN+Clean
combination keys to lock/disable the whole keyboard for easy cleaning without error output. Which is good for outdoor application with direct rain and
very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.

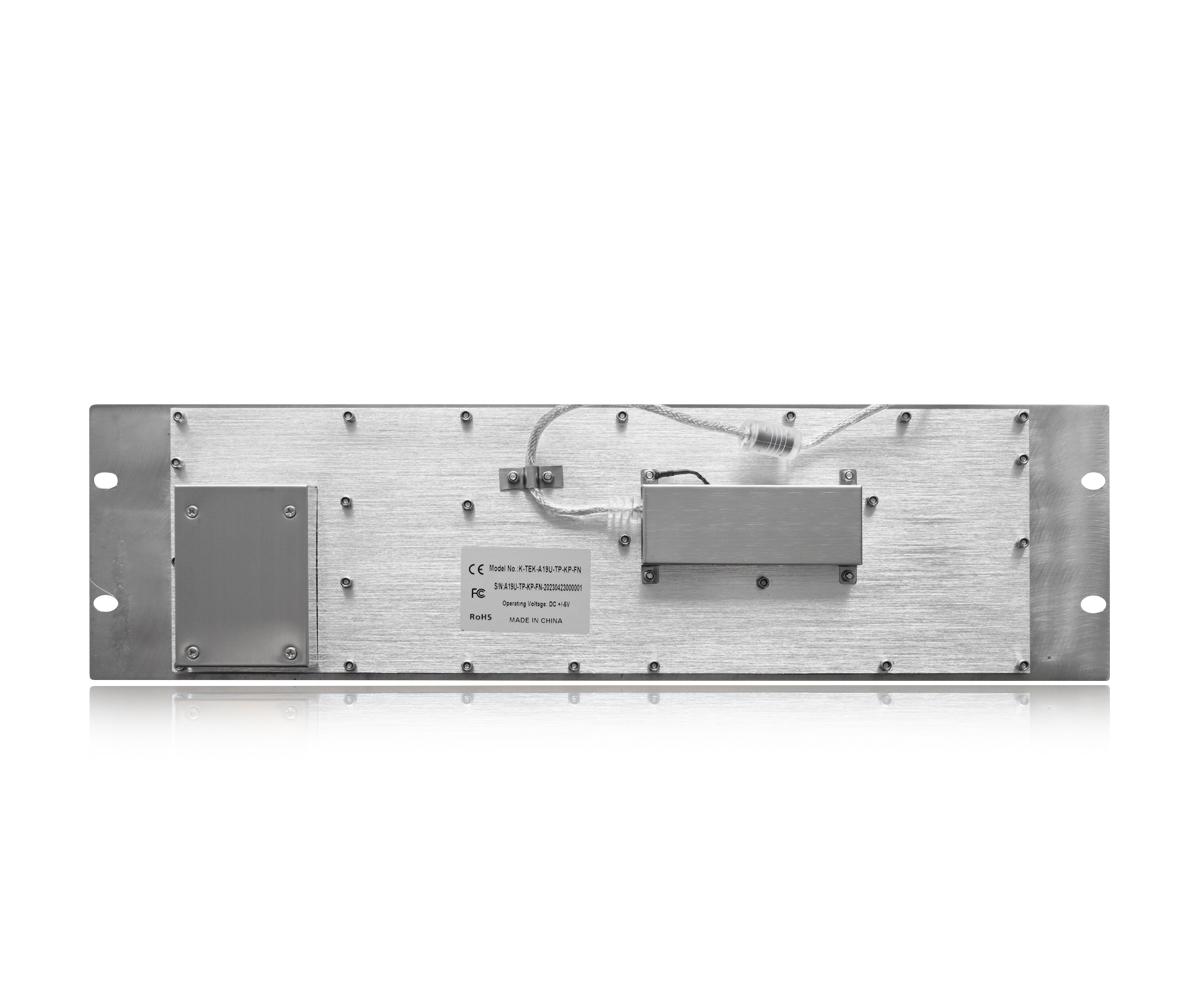

DIMENSIONS: 482.6mm x 133.3mm (top panel)
MECHANICAL DATA |
Actuator/keys | 103 keys (including 2 mouse buttons) |
Key top style | Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available |
Key Size | 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key |
Key travel | 1.50±0.10mm |
Actuation Force | 1.5N±0.2N for key 14.0mm x 14.0mm (pressure point ), 2.5N±0.2N for key 14.0mm x 28.0mm (pressure point) |
Switch life | more than 5 million of operations |
Touch pad | sealed and ruggedized tough touchpad |
Touchpad cover | Composite |
More than Lifetime 10 million strokes |
Mutual capacitance sensing |
X/Y axis location detection resolution | 40 Counts /mm |
X/Y position report | relative |
Tracking speed | Maximum 1,016 m/sec |
G.W. | 2.20KGs |
ELECTRICAL DATA |
Supply Voltage | DC +5V±5% |
Current Rating | 50mA |
EMC Standard | EN 55032:2015 EN 55035:2017 |
Lifespan | > 5 years |
Switch Contact Material | Carbon-on-Gold key switch technology PCB |
Interface | PS2, USB available |
OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
ENVIRONMENTAL ADAPTABILITY |
Operating temperature | -20℃ to +65℃ |
Storage temperature | -30℃ to +75℃ |
Operating RH | 3%-95% |
Atmospheric pressure | 60-106Kpa |
Saline mist | 96 hours, IEC 60512-6 |
Damp heat test at +40℃ | 21 days, IEC 60512-6 |
Dry heat test at +85℃ | 10 days, IEC 60512-6 |
RELIABILITY |
RoHS Compliant, CE and FCC, ESD |
Protection Level | IP65 (front panel) |
Vandal resistant | IK08 |
Key Lifespan | >5 million actuations |
MTBF | >20000H |
MTTR | <30min |
APPLICATION | Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc. |
