Product Detail
K-TEK-SMC30

K-TEK-SMC30

Category： Joystick
Key Number： 0 or 1 button
Interface： USB
Protection Level： IP65
Mounting Solution： Panel mount
Operating Temperature： -40℃~+70℃
Description
Download

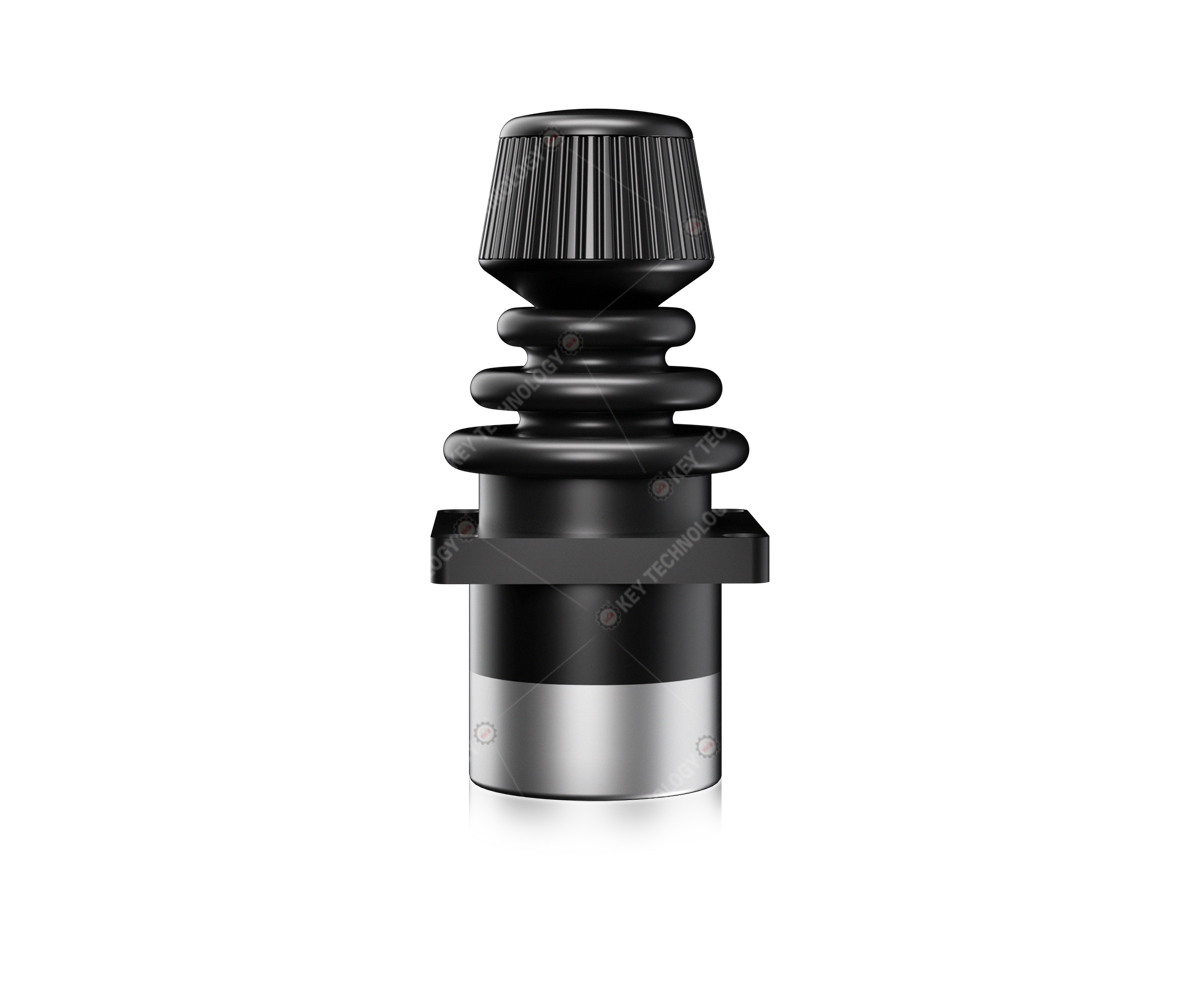

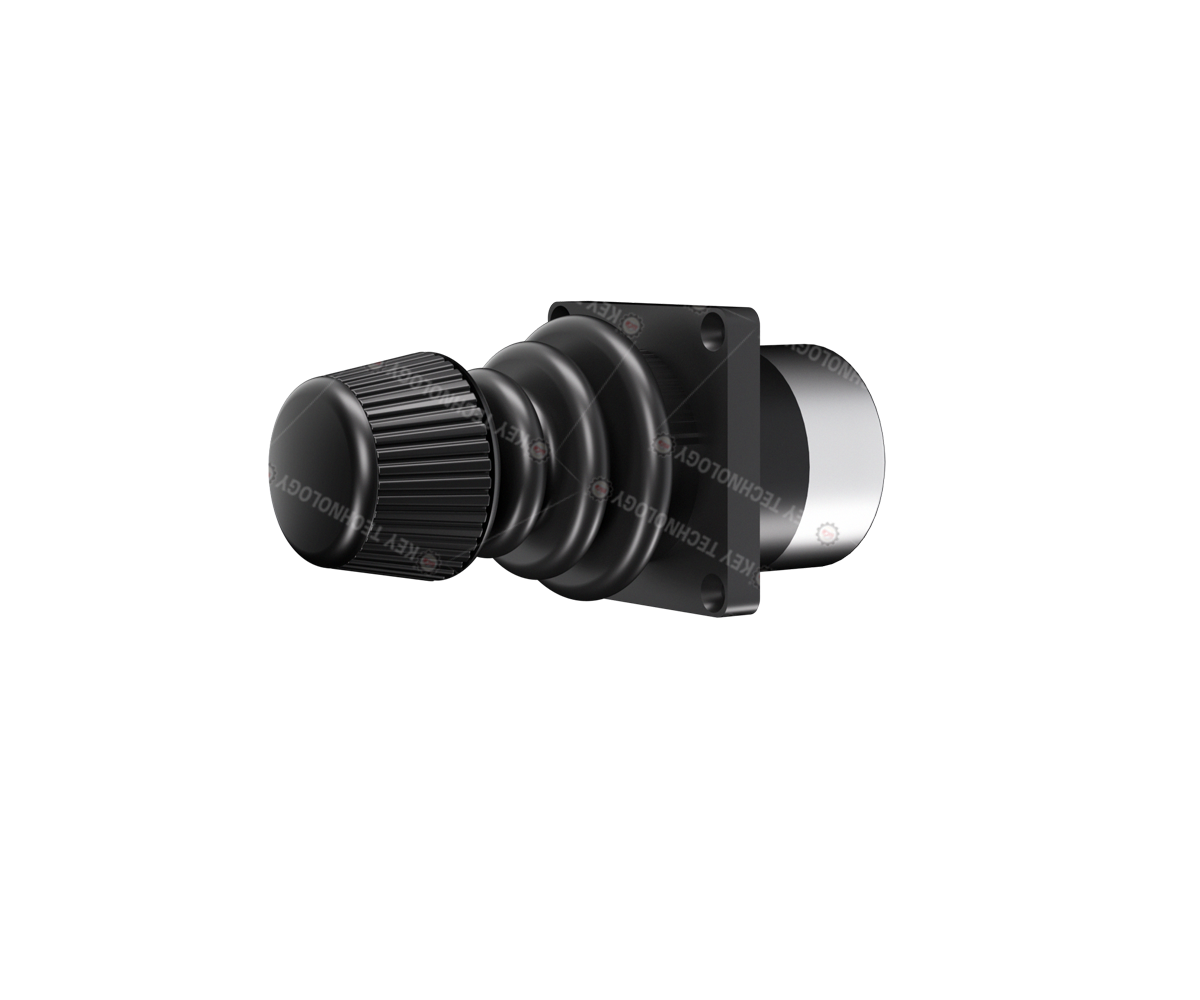

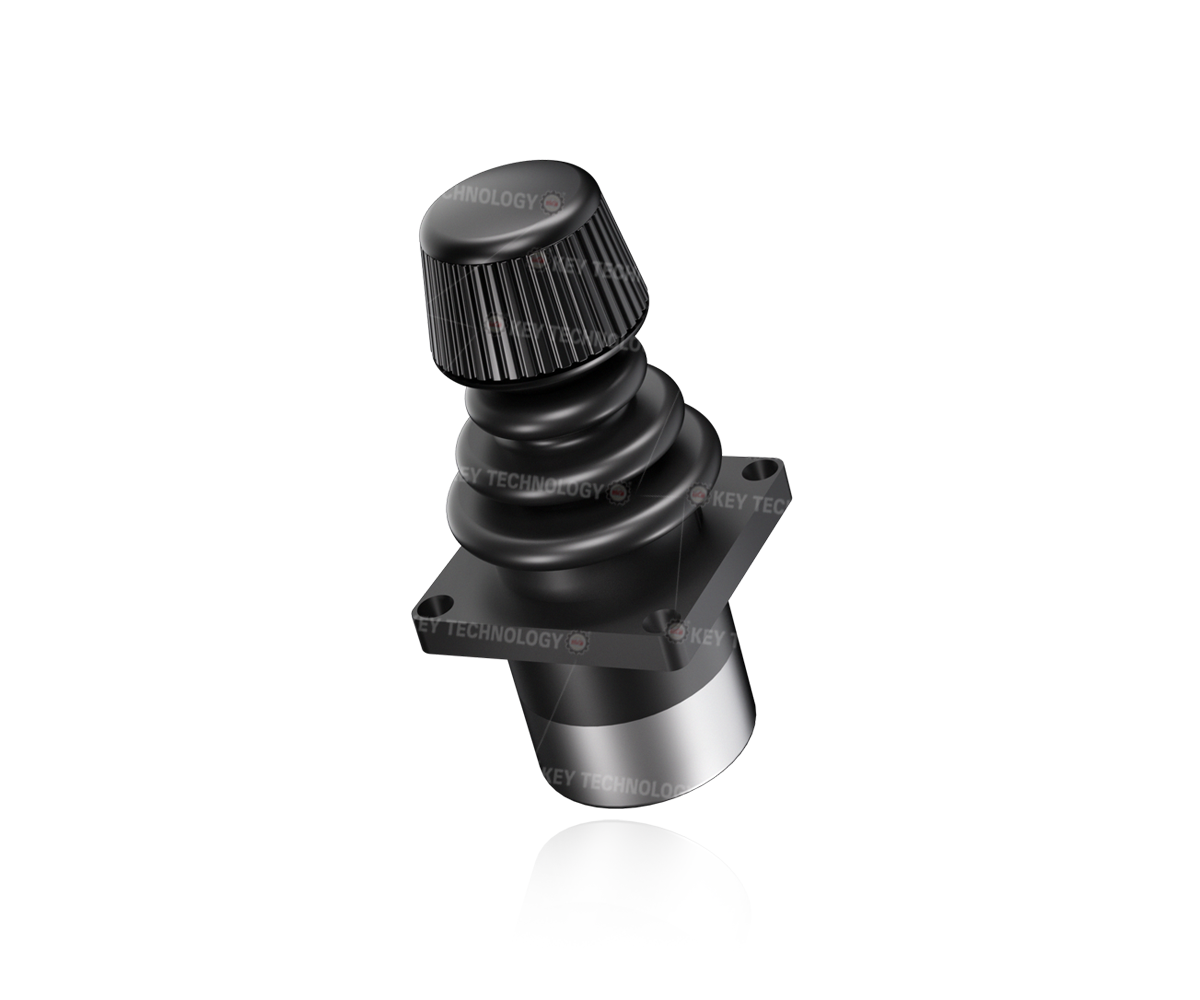

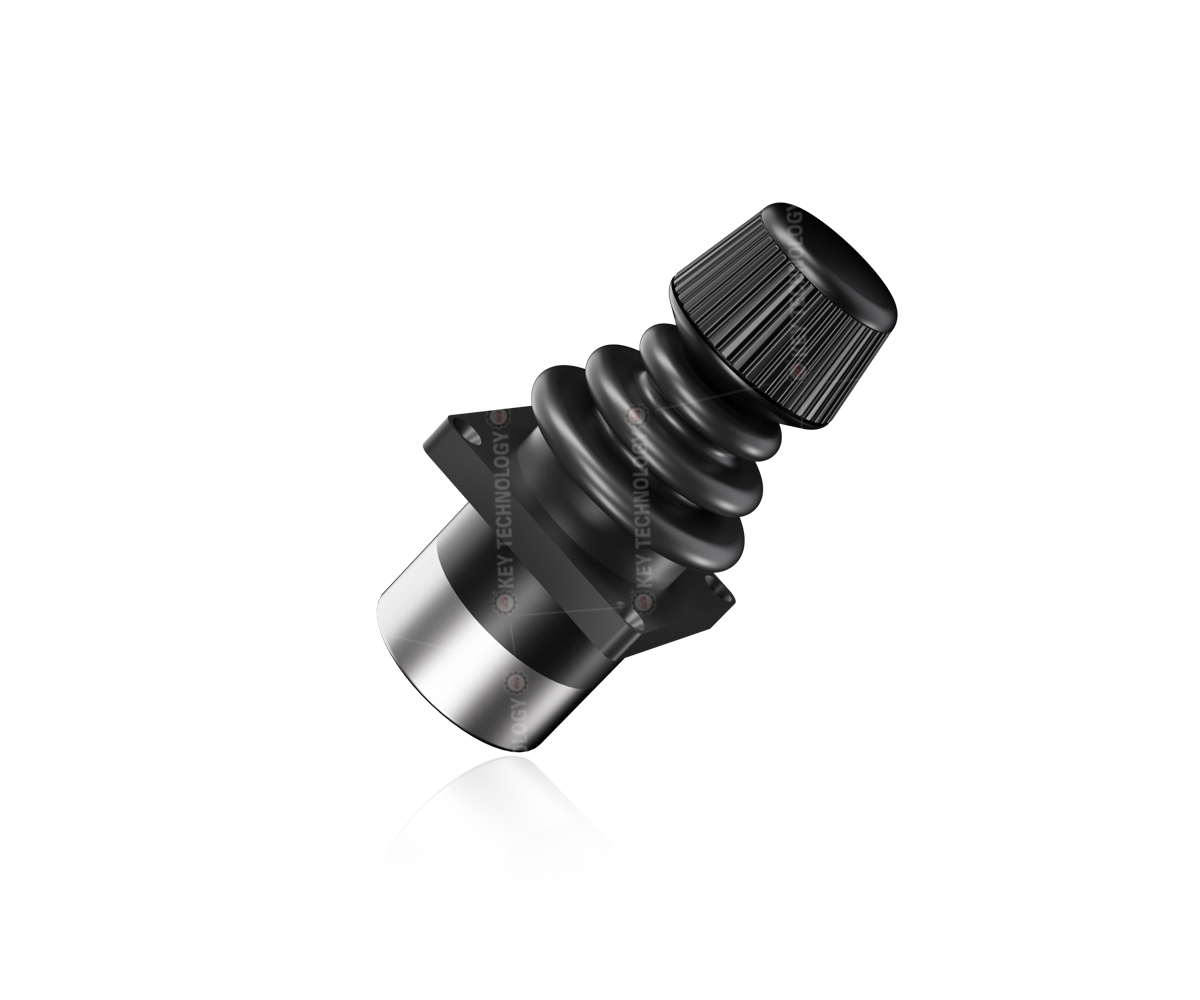

DESCRIPTION: K-TEK-SMC30 Hall Joystick Series provides user with 2-axis or 3-axis configurations, made by stainless steel and aluminum alloy materials, featuring a spring return mechanism. Equipped with high-precision Hall-effect sensors, full-temperature-range linear compensation, and IP65 or higher protection level, with smoother operation feeling, and ergonomic mechanical design, as well as panel mounting solution.

Installation Dimension: 28.0mm x 28.0mm


MECHANICAL DATA

Material

Stainless steel + Aluminum alloy

Installation Dimension

28.0mm x 28.0mm

Base Dimension

38.0mm x 38.0mm x 31.5mm

Positioning

Spring return

Operating Angle

Main joystick ±20 degrees, Square boundary (Circular Angle)

Operating range

360°

Push-button switch

0 or 1 button (waterproof button)

Sensor

Hall sensor

Mechanical lifespan

More than 500,000 cycles

ELECTRICAL DATA

Power supply:

DC5V, DC12-24V

Power consumption

<9-25MA (5V power supply), varies from signal output and the number of axis

Signal output:

Analog voltage, RS485, RS422, RS232, USB

ENVIRONMENTAL ADAPTABILITY

Operating temperature

-40℃ to +70℃

Storage temperature

-55℃ to +85℃

Protection Level

IP65 or above
