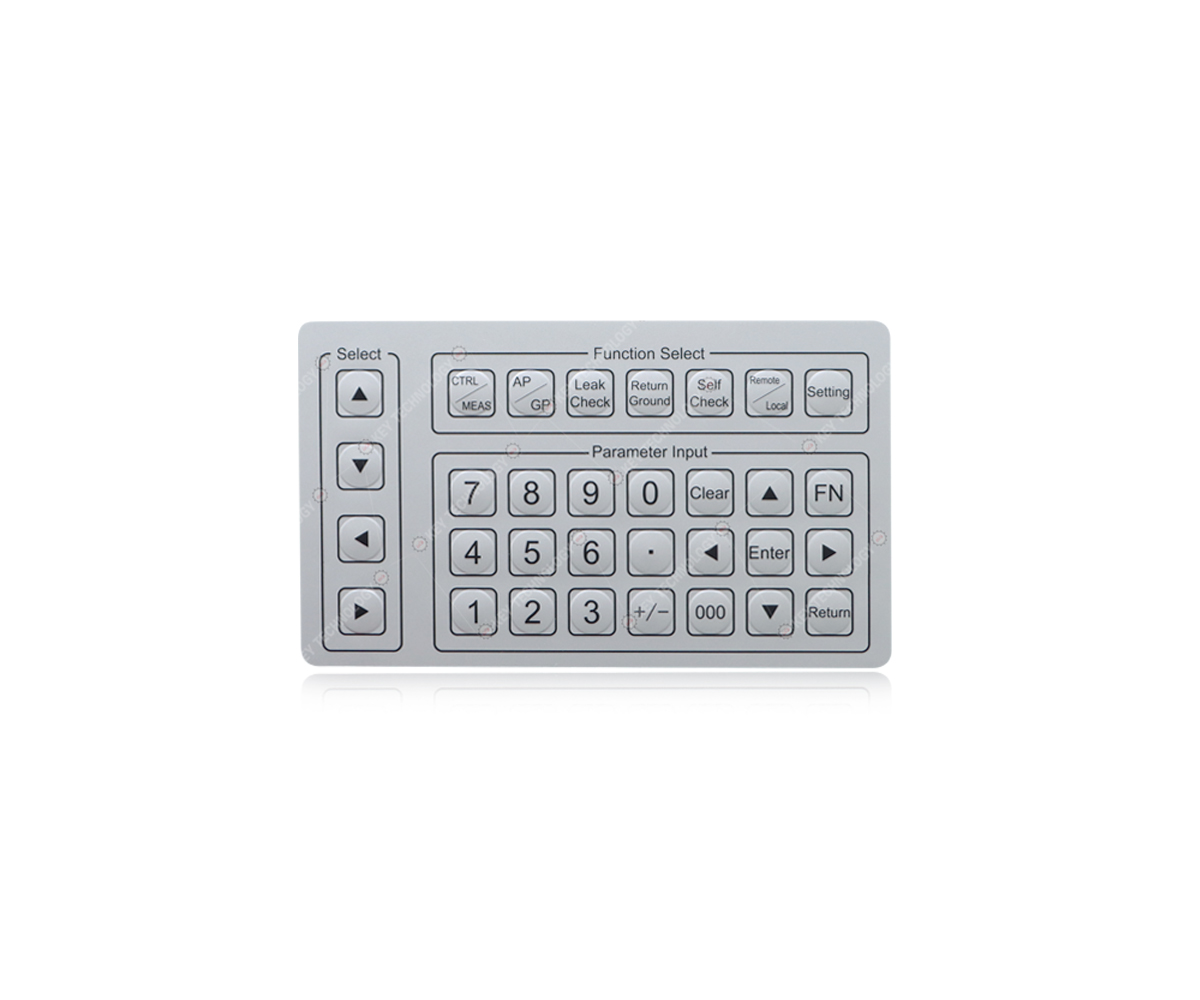

DESCRIPTION: 32 keys compact format IP65 dynamic membrane industrial keypad with built-in military grade PCB, industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with extremely good tactile feeling for reliable data input, surface mounted extremely flush with anti-microbial functionalities, the fonts printed on the film underneath will never fade, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, with top panel mounted solution. with USB/PS2 interface, wide temperature of -40 to +75℃. The whole keyboard is designed to meet MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, rain, fungus etc.), and MIL-STD-461G-EMC-EMI-EMS-ESD (optional), as well as military standards: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity. DIMENSIONS: 180.0mm x 105.0mm (top panel)
MECHANICAL DATA | Number of keys | 32 keys | Key switch Technology | metal dome PCB with gold-on-gold key switch technology with short stroke keys | Actuation Force | 3.5N±0.2N (press point) | Key Travel | 0.45±0.05mm | Mounting Type | Top panel mounting | Colors | 2 (white, black) | G.W. | 0.45KGs | Switch life | more than 1 million of operations | Key Dimensions (print area) | 14.0mm x 14.0mm | ELECTRICAL DATA | Supply Voltage | DC +5V±5% | Current Rating | 30mA | Meet MIL-STD-461G (EMC, EMI, EMS, ESD): | 1 | CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads | 2 | CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads | 3 | CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads | 4 | CS106 Conducted Susceptibility, Transients, Power Leads | 5 | CS112 Electrostatic Discharge Susceptibility | 6 | CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection | 7 | CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation | 8 | CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads | 9 | RE101 25Hz -100kHz Radiated Emissions, Magnetic Field | 10 | RE102 10kHz - 18GHz Radiated Emissions, Electric Field | 11 | RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field | 12 | RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field | MIL-STD-810H (high and low wide working temperature, low pressure, humidity, vibration, shock, temperature shock, drop, rain, salt mist, sand and dust, fungus, solar radiation etc.) | Lifespan | > 5 years | Switch Contact Material | military PCB with gold-on-gold key switch technology | Interface | PS2, USB available | OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). | ENVIRONMENTAL ADAPTABILITY | Operating temperature | -40℃ to +75℃ | Storage temperature | -45℃ to +85℃ | Saline mist | 96h, IEC60512-6 | Damp heat test at +40℃ | 21 days, IEC 60512-6 | Dry heat test at +85℃ | 10 days, IEC 60512-6 | Humidity | 100% | Atmospheric pressure | 60-106Kpa | RELIABILITY | RoHS compliant, CE and FCC certified | MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810H (high and low wide working temperature, low pressure, humidity, vibration, shock, temperature | shock, drop, rain, salt mist, sand and dust, fungus, solar radiation etc.) | Protection Level | IP65 dynamic (front panel) | Key Lifespan | >1 million actuations | MTBF | >20000H | MTTR | <30min | APPLICATIONS | Industrial, marine, food and beverage, processing factory, medical and pharmaceutical, numerical control machine etc. |
|
