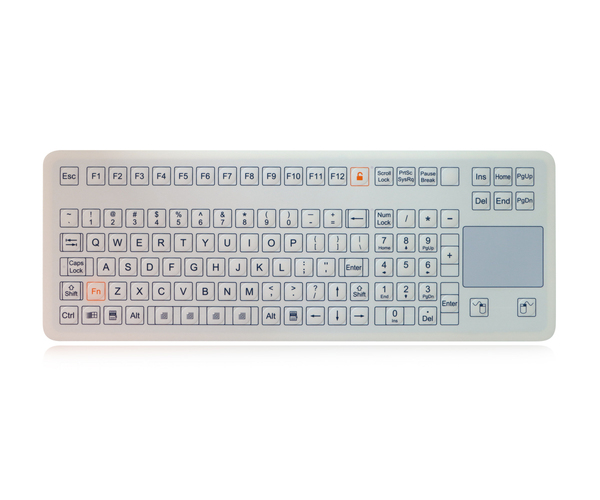

K-TEK-D399TP-KP-FN-DT-SW

Category：	Membrane keyboard
Key Number：	108 keys (including 2 mouse buttons)
Key Travel：	0.45±0.05mm
Interface：	USB/PS2 optional
Key Switch：	Omron micro key switch technology
Protection Level：	IP68
Mounting Solution：	Mountable desktop solution
Operating Temperature：	-20℃ to +65℃
Application：	Industrial, marine, food and beverage, processing factory, medical and pharmaceutical, numerical control machine etc.

Prev： K-TEK-D405-25-OTB-KP-FN-SW

Next： K-TEK-M129-OTB-AVR-NV-151B

Description

Download

DESCRIPTION: 108 keys IP68 dynamic rated washable industrial membrane keyboard with full keyboard functionalities with integrated numeric keypad and function keys on the upper line, IP65 dynamic sealed and ruggedized tough touchpad for fast and accurate cursor position, totally sealed and ruggedized industrial PCB with super quality OMRON micro switch technology with short stroke 0.45mm with extremely good tactile feeling for reliable data input, with FN + Lock combination key for easy cleaning via lock/disable the entire keyboard without needing to take the keyboard from PC, surface mounted extremely flush with anti-microbial, the fonts printed on the film underneath will never fade, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, stand alone movable desk top version with robust polycarbonate case.

DIMENSIONS: 399.00mm x 149.00mm x 18.80mm (L x W x H)

MECHANICAL DATA
Number of Keys	108 keys (including 2 mouse buttons)
Key switch Technology	OMRON micro switch technology with short stroke 0.45mm for stable and accurate data input
Actuation Force	2.0N±0.2N (press point)
Key Travel	0.45mm±0.05mm
Mounting Type	Flat desktop version
Colors	White
G.W.	1.20KGs
Key Dimensions (print area)	14.0mm x 14.0mm
Touchpad cover	Composite
Method	Capacitive
More than Lifetime 10 million strokes
Mutual capacitance sensing
X/Y axis location detection resolution	40 Counts /mm
X/Y position report	relative
Tracking speed	Maximum 1,016 m/sec
ELECTRICAL DATA
Supply Voltage	DC +5V ± 5%
Current Rating	50mA
EMC Standard	EN 55032:2015 EN 55035:2017
Lifespan	> 5 years
Interface	PS2, USB available
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature	-20℃ to +65℃
Storage temperature	-30℃ to +75℃
Operating RH	100%
Atmospheric pressure	60-106Kpa
Saline mist	96 hours, IEC 60512-6
Damp heat test at +40℃	21 days, IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
RELIABILITY
RoHS, CE, FCC
Protection Level	IP68
Key Lifespan	>1 million actuations
MTBF	>20000H
MTTR	<30min
APPLICATION	Industrial, marine, food and beverage, processing factory, medical and pharmaceutical, numerical control machine etc.

K-TEK-D399TP-KP-FN-DT-SW mechanical drawing
