K-TEK-B312TP-KP-FN-BL-DWP

MECHANICAL DATA

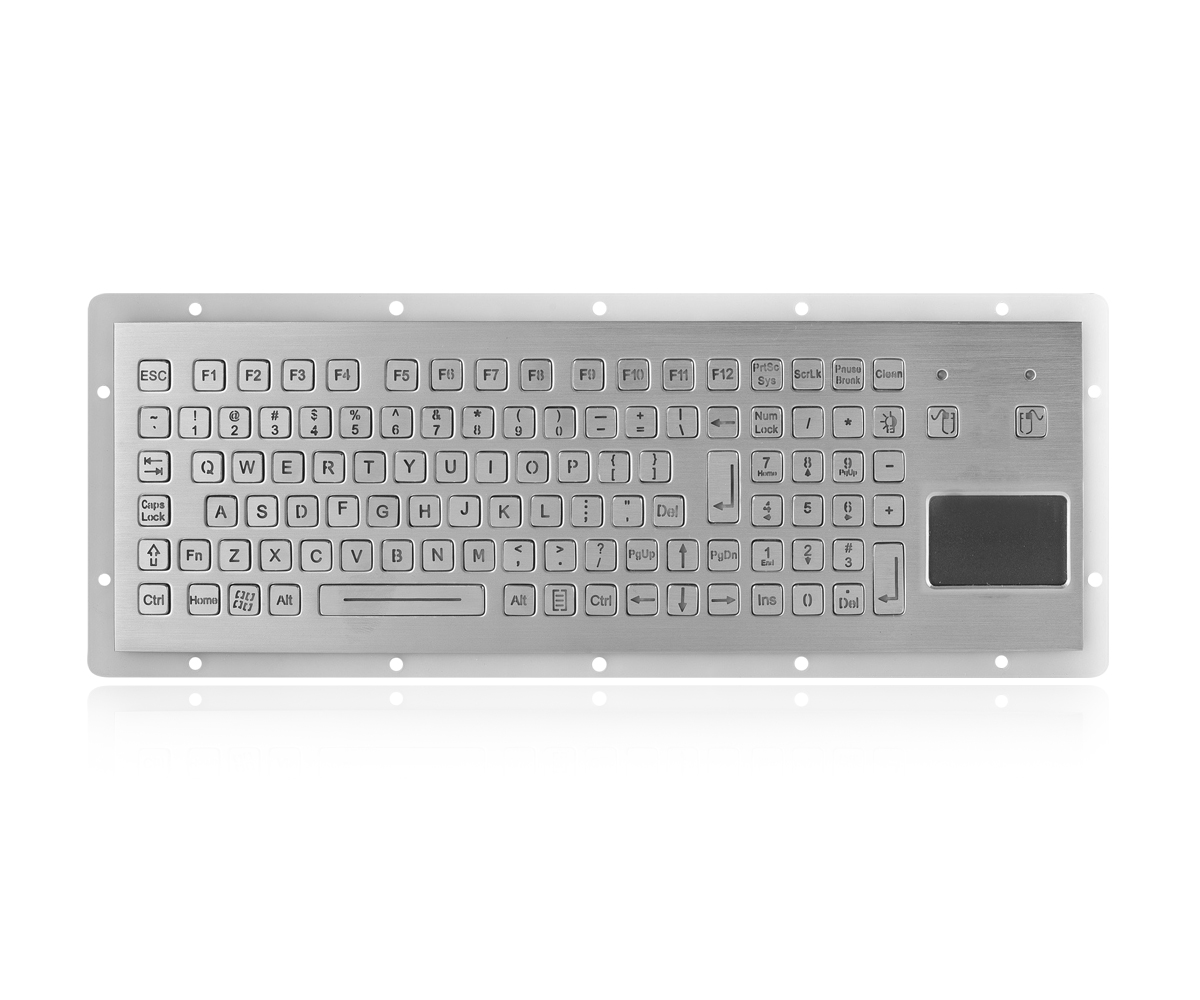

Actuator/keys

106 keys (including 2 mouse buttons), super quality SUS304 brushed stainless steel

Key Size

10.0mm x 10.0mm for normal keys, 10.0mm x 23.0mm for enter key, 10.0mm x 53.0mm for space bar

Key travel

0.45±0.05mm

Actuation Force

2.5N±0.2N for small key 10.0mm x 10.0mm (pressure point ), 5.0N±0.4N for Enter key (pressure point)

Front Plate

1.5mm thickness super quality brushed stainless steel

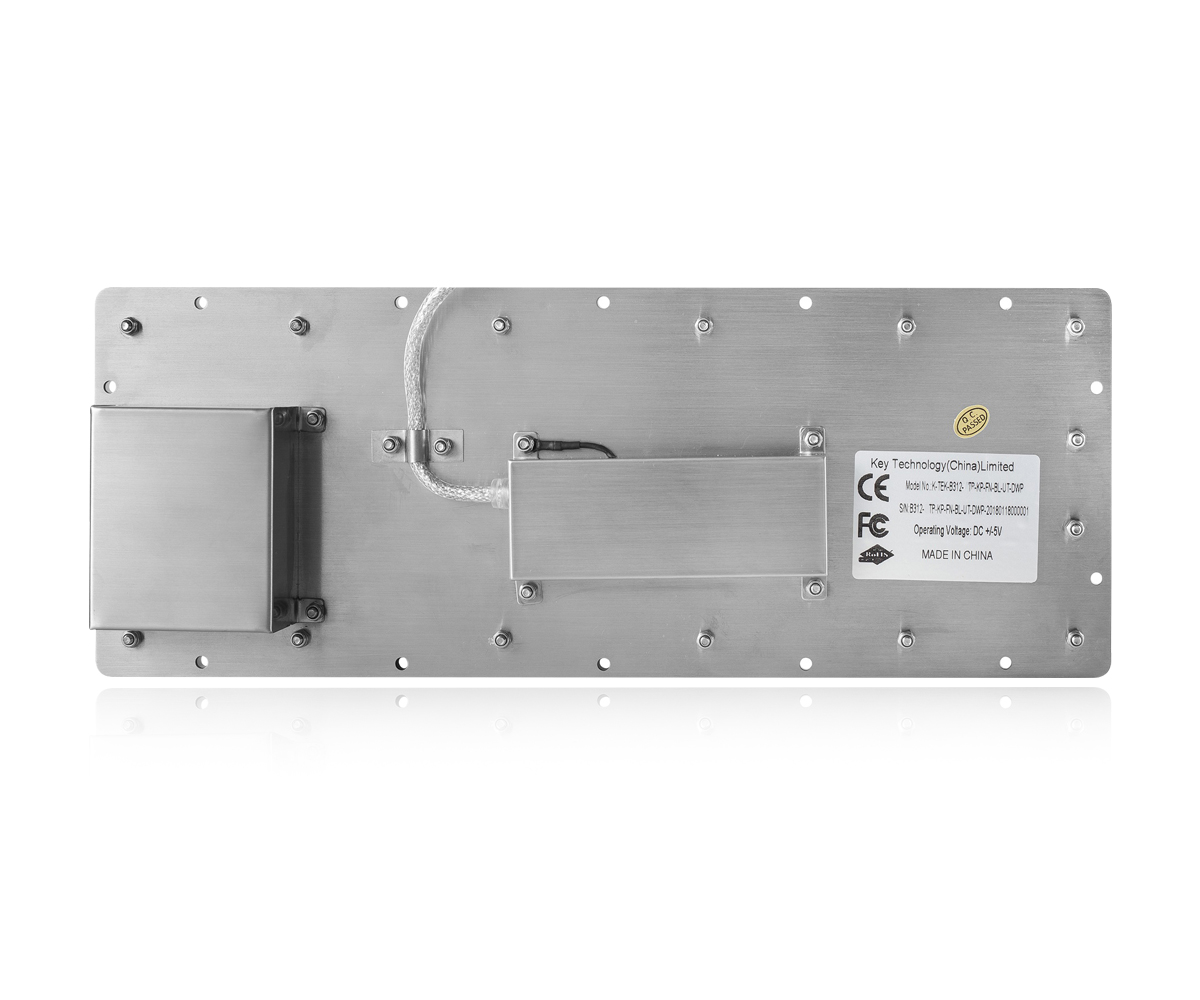

Back Plate

1.5mm thickness super quality brushed stainless steel

Switch life

more than 1 million of operations

Touch pad

sealed and ruggedized tough touchpad

Touchpad cover

Composite

More than Lifetime 10 million strokes

Mutual capacitance sensing

X/Y axis location detection resolution

40 Counts /mm

X/Y position report

relative

Tracking speed

Maximum 1,016 m/sec

G.W.

2.0KGs

ELECTRICAL DATA

Supply Voltage

+5V DC ± 5%

Current Rating

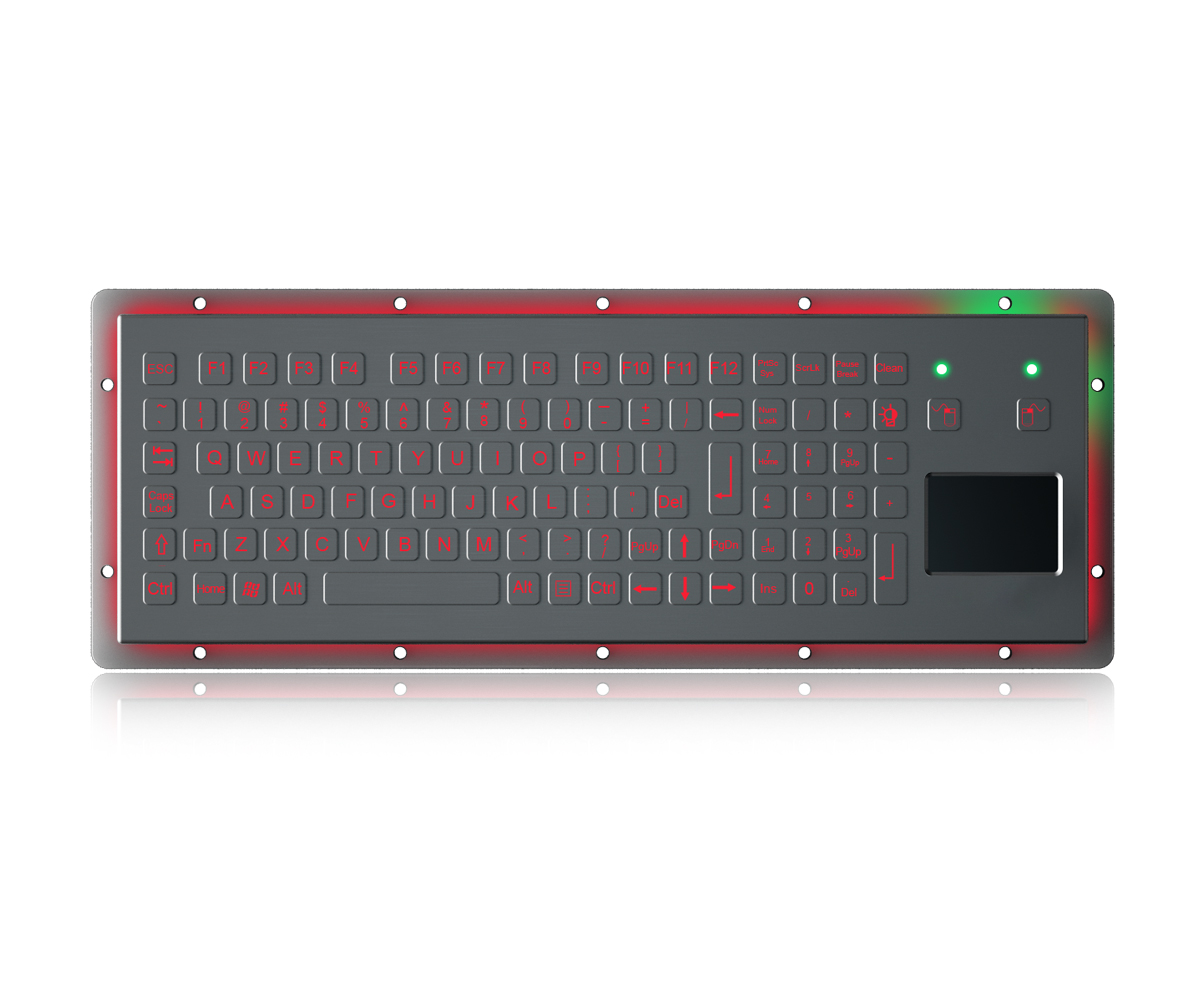

50mA (with backlight off) ,300mA (with backlight on)

EMC Standard

EN 55032:2015   EN 55035:2017

Lifespan

> 5 years

Switch Contact Material

Gold-on-Gold key switch technology PCB

Interface

PS2, USB available

OS

All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

ENVIRONMENTAL ADAPTABILITY

Operating temperature

-20℃ to +65℃

Storage temperature

-30℃ to +75℃

Operating RH

3%~95%

Atmospheric pressure

60-106Kpa

Saline mist

96 hours, IEC 60512-6

Damp heat test at +40℃

21 days, IEC 60512-6

Dry heat test at +85℃

10 days, IEC 60512-6

RELIABILITY

RoHS Compliant, CE and FCC, ESD

Protection Level

IP65

Vandal resistant

IK09

Key Lifespan

>1 million actuations

MTBF

>20000H

MTTR

<30min

APPLICATIONS

Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof

automation, oil and gas etc.
